Description
Description

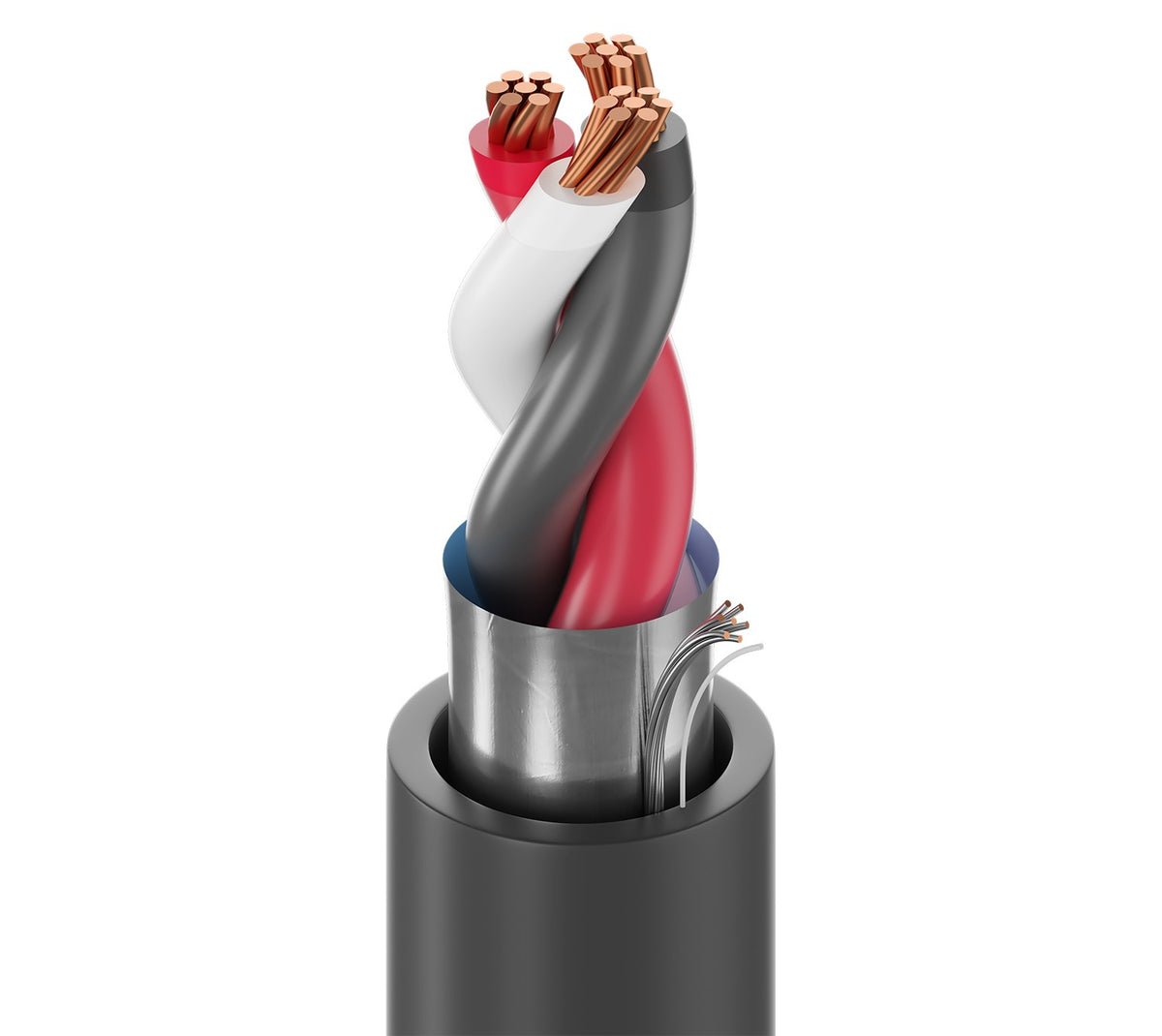

Belden 3091A 01010000 | Power Limited Tray Cable, 1 Triad, 16 Awg, 7X24 Strands, 600V, Bare Copper, PVC Jacket
16 AWG triads stranded (7x24) bare copper conductors, twisted triads, overall Beldfoil shield (100% coverage), PVC/Nylon insulation, PVC jacket.
Specifications
Specifications
Belden - 3091A 01010000 - Applications
- Industrial Control
- Raceways Cable Trays And Ducts
- Digital Control
- Instruments (4-20Ma; 0-10V)
- Low Voltage Digital Control (24V)
- Control Circuits
- Distributed Control System (Dcs)
- Programmable Logic Controller (Plc)
Belden - 3091A 01010000 - Specifications
| Armor | No |
|---|---|
| Conductor Count | 1 Triad |
| Conductor Size | 16 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Screen/Shield Type | Overall Aluminum Mylar Foil Shield |
| Screen/Shield | Yes - This Has A Shield |
| Thermocouple | No |
| UNSPSC Code | 26121642 |
| Stranding | 7x24 |
| Stationary Min. | 3.8 in (97 mm) |
| Installation Min. | 3.8 in (97 mm) |
| Color | Black |
| Length | 10,000 ft |
| UPC | 612825141273 |
