Brand: Belden
|
SKU:
B3106A-2

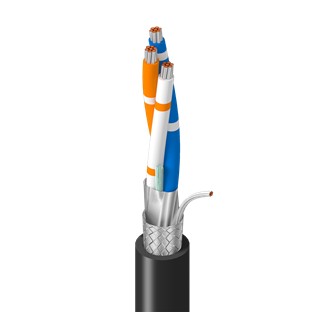

Belden 3106A 0105000 | RS-485, 1 Pair, 22AWG, Stranded TC, PE Insulation, with OS, 1C 22AWG Stranded, PVC Insulation, OA TC Braid
Regular price
$5.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 3106A 0105000 | RS-485, 1 Pair, 22AWG, Stranded TC, PE Insul...
Regular price
$5.39
Unit price
Description
Description
Belden 3106A 0105000 | RS-485, 1 Pair, 22AWG, Stranded TC, PE Insulation, with OS, 1C 22AWG Stranded, PVC Insulation, OA TC Braid
22 AWG stranded (7x30) tinned copper conductors, Datalene insulation, twisted pairs, overall Beldfoil shield (100% coverage) plus a tinned copper braid (65% coverage), drain wire, UV resistant PVC jacket.
Specifications
Specifications
Belden - 3106A 0105000 - Specifications
| Element | Pair(s),Conductor(s) |
|---|---|
| Stranding | 7x30,7x30 |
| UL Temperature | 60°C |
| Stationary Min. | 3.6 in (91 mm) |
| Installation Min. | 3.6 in (91 mm) |
| Max. Pull Tension | 75.26 lbs (34.14 kg) |
| Bulk Cable Weight | 48 lbs/1000ft |
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
| Flammability / Reaction to Fire | UL 1685 UL Loading, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 725, Article 800, CM, PLTC |
| CEC / C(UL) Compliance | CM |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | FhdPE-Foamed High-Density Polyethylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 |
| Screen/Shield Type | Braid Over Foil Shield |
| Screen/Shield | Yes |
| Shield Construction | Overall Foil &Amp Braid |
| UNSPC Code | 26121613 |
