Brand: Belden
|
SKU:
5MB-0601-B-03

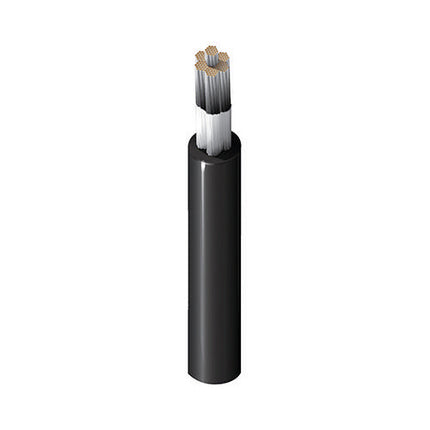

Belden 31506 002501 | Lead Wire, #6 Str TC, Neoprene Ins, AWM 3048
Regular price
$5.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 31506 002501 | Lead Wire, #6 Str TC, Neoprene Ins, AWM 3048
Regular price
$5.34
Unit price
Description
Description
Low Temp Rubber Lead Wire, 6AWG (84x25) Tinned Copper, Neoprene Insulation, AWM 3048 600V 90C
Specifications
Specifications
Temperature Range
| Non-UL Temp Rating | 90°C |
|---|---|
| UL Temp Rating | 90°C |
Mechanical Characteristics
| Bulk Cable Weight | 127 lbs/1000ft |
|---|---|
| Min Bend Radius/Minor Axis | 1.38 in |
Standards
| UL AWM Style Compliance | UL AWM Style 3048 |
|---|
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU RoHS Compliance Date (yyyy-mm-dd) | 2004-01-01 |
