Brand: Belden
|
SKU:
5MB-1802-B-01

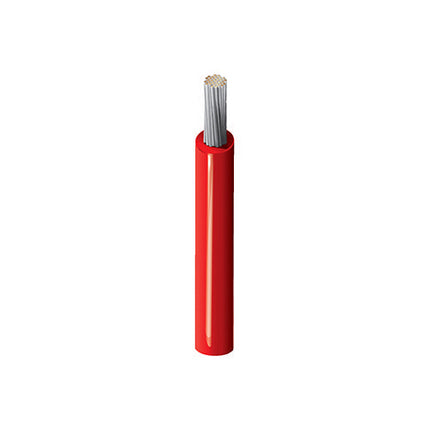

Belden 31518 0095000 | Lead Wire, #18 Str TC, Neoprene Ins, AWM 3044
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 31518 0095000 | Lead Wire, #18 Str TC, Neoprene Ins, AWM 3044
Regular price
$1.46
Unit price
Description
Description
Low Temp Rubber Lead Wire, 18AWG (19x30) Tinned Copper, Neoprene Insulation, AWM 3044 CSA TYPE CL902 300V 90C
Specifications
Specifications
Product Overview
| Suitable Applications | internal wiring of appliances, oil resistance applications, motor lead systems |
|---|
Mechanical Characteristics
| Stationary Min. | 0.44 in |
|---|---|
| Recommended Max Baking Cycles | 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C) |
| Bulk Cable Weight | 10 lbs/1000ft |
Standards and Compliance
| Sustainability | CA Prop 65 |
|---|---|
| Flammability / Fire Resistance | Horizontal, UL Horizontal Flame |
| AWM Compliance | UL AWM Style 3044 |
| CEC / C(UL) Compliance | CL-902 |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
