Brand: Belden | SKU: 5MB-1802-B-01-DY1

Belden 31518 0095000 | Lead Wire, #18 Stranded TC, Neoprene Insulation, AWM 3044

$1.46

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

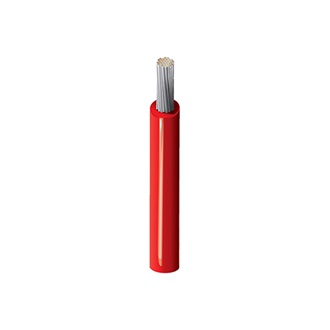

Belden 31518 0095000 | Lead Wire, #18 Stranded TC, Neoprene Insulation, AWM 3044

Low Temp Rubber Lead Wire, 18AWG (19x30) Tinned Copper, Neoprene Insulation, AWM 3044 CSA TYPE CL902 300V 90C. Neoprene insulation has good heat aging characterstics and is an excellent low-cost motor lead wire. It may be considered for use in hazardous locations and is being used in explosion-proof motors recognized by UL.

Specifications

Belden - 31518 0095000 - Specifications

Element	Conductor(s)
No. of Elements	1
Size	18 AWG
Stranding	19x30
UL Temperature	90°C
Environmental Suitability	Indoor, Outdoor, Oil Resistance
Sustainability	CA Prop 65
Flammability / Reaction to Fire	Horizontal flame
AWM Compliance	AWM 3044
CEC / C(UL) Compliance	CL-902
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Conductor Material	Tinned Copper
Conductor Size	18 Awg (American Wire Gauge)
Conductor Stranding	16 Strands In Each Conductor
Insulation Color	White
Insulation Material	Neo-Neoprene, Polychloroprene
Product Type	Ul Styles 3000-3999
Rohs Compliant	Yes
Shielded	Not Shielded
Temperature Rating	90 Degrees Centigrade (194 F)
UNSPC Code	26121539

Documents and Downloads

Belden 31518 0095000 Data Sheet
