Brand: Belden
|
SKU:
5MB-1602-B-34

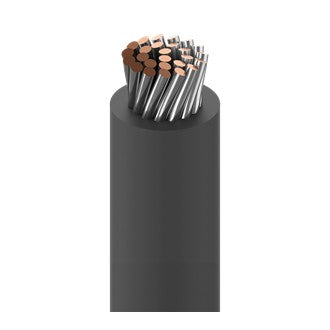

Belden 32516 0105000 | Lead Wire, #16 Stranded TC, Neoprene Insulation, AWM 3046
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 32516 0105000 | Lead Wire, #16 Stranded TC, Neoprene Insulat...
Regular price
$1.46
Unit price
Description
Description
Belden 32516 0105000 | Lead Wire, #16 Stranded TC, Neoprene Insulation, AWM 3046
Low Temp Rubber Lead Wire, 16AWG (26x30) Tinned Copper, Neoprene Insulation, AWM 3046 CSA TYPE CL903600V 90C. Neoprene insulation has good heat aging characterstics and is an excellent low-cost motor lead wire. It may be considered for use in hazardous locations and is being used in explosion-proof motors recognized by UL.
Specifications
Specifications
Belden - 32516 0105000 - Specifications
| Size | 16 |
|---|---|
| Stranding | 26x30 |
| Material | TC - Tinned Copper |
| UL Temperature | 90°C |
| Sustainability | CA Prop 65 |
| AWM Compliance | AWM 3046 |
| CEC / C(UL) Compliance | CL-903 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Ul Style | Ul Type Awm, Style 3046 |
| UNSPC Code | 26121539 |
