Brand: Belden
|
SKU:
5MB-1801-B-4
Belden 32518 0041000 | Lead Wire, #18 Str TC, Neoprene Ins, AWM 3046
Regular price
$1.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

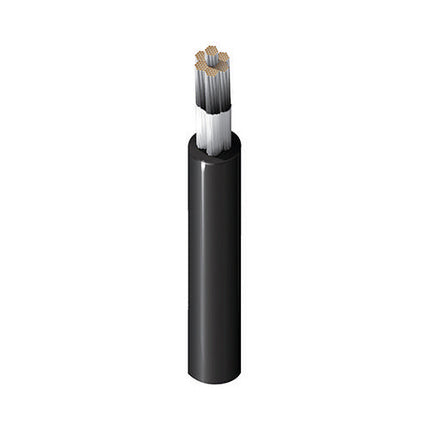

Belden 32518 0041000 | Lead Wire, #18 Str TC, Neoprene Ins, AWM 3046
Regular price
$1.72
Unit price
Description
Description
Low Temp Rubber Lead Wire, 18AWG (16x30) Tinned Copper, Neoprene Insulation, AWM 3046 CSA TYPE CL903600V 90C
Specifications
Specifications
Product Overview
| Suitable Applications | internal wiring of appliances, oil resistance applications, motor lead systems |
|---|
Temperature Range
| Non-UL Temp Rating | 90°C |
|---|
Mechanical Characteristics
| Recommended Max Baking Cycles | 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C) |
|---|---|
| Bulk Cable Weight | 15 lbs/1000ft |
| Min Bend Radius/Minor Axis | 0.57 in |
Standards
| UL AWM Style Compliance | UL AWM Style 3046 |
|---|---|
| CSA Type | CL903 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
Documents and Downloads
Documents and Downloads
