Brand: Belden
|
SKU:
8MB-0201-B

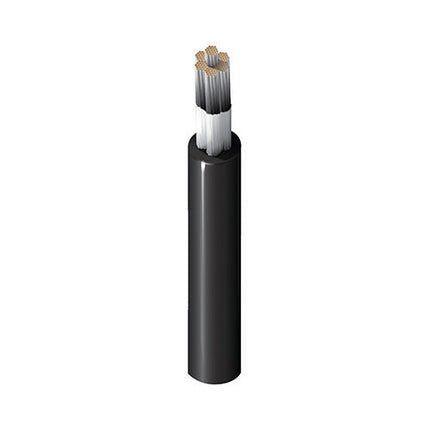

Belden 33302 010250 | Lead Wire, #2 Str TC, Silicone Ins, AWM 3213
Regular price
$11.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 33302 010250 | Lead Wire, #2 Str TC, Silicone Ins, AWM 3213
Regular price
$11.21
Unit price
Description
Description
Low Temp Rubber Lead Wire, 2AWG (163x24) Tinned Copper, Silicone Insulation, AWM 3213 CSA TYPE AWM 600V 150C
Specifications
Specifications
Product Overview
| Suitable Applications | Class 155(F) or Class 180(H) motor lead systems , high temperature applications, internal wiring of lighting fixtures and appliances |
|---|
Temperature Range
| Non-UL Temp Rating | 150°C |
|---|
Mechanical Characteristics
| Recommended Max Baking Cycles | 24 Hours @ 410°F (210°C) |
|---|---|
| Bulk Cable Weight | 68.8 lbs/1000ft |
| Min Bend Radius/Minor Axis | 1.83 in |
Standards
| UL AWM Style Compliance | UL AWM Style 3213 |
|---|---|
| CSA AWM Compliance | CSA AWM I B |
| CSA Type | AWM |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
