Belden 34017 0082000 | Lead Wire, #17 Stranded TC, Silicone Insulat...
Regular price
$3.98
Unit price
Brand: Belden
|
SKU:
1MS-1701-B-6
Regular price
$3.98
Unit price
Description
Description

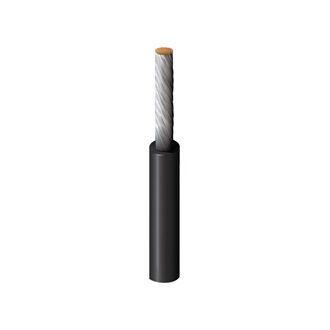

Belden 34017 0082000 | Lead Wire, #17 Stranded TC, Silicone Insulation, AWM 3123
Low Temp Rubber Lead Wire, 17AWG (210x40) Tinned Copper, Silicone Insulation, AWM 3123 600V 150C. Suitable for mercury switches when protected against mechanical abuse. This wire has a tough, flexible Silicone insulation that remains flexible over a wide temperature range: +150C to -55C.
Specifications
Specifications
Belden - 34017 0082000 - Specifications
| Stranding | 210x40 |
|---|---|
| Material | TC - Tinned Copper |
| No. of Conductors | 1 |
| Bulk Cable Weight | 12 lbs/1000ft |
| Min. Bend Radius/Minor Axis | 0.48 in |
| Conductor Material | Tinned Copper |
| Conductor Size | 17 Awg (American Wire Gauge) |
| Conductor Stranding | 210 Strands In Each Conductor |
| Insulation Color | Gray (Slate) |
| Insulation Material | Sr-Silicone Rubber |
| Product Type | Ul Styles 3000-3999 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 150 Degrees Centigrade (302 F) |
| UNSPC Code | 26121603 |
