Brand: Belden
|
SKU:
B34418-8

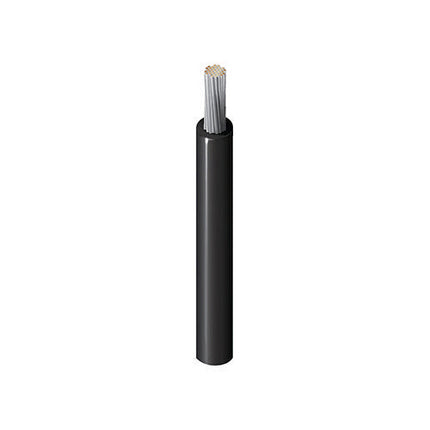

Belden 34418 0085000 | Lead Wire, #18 Str TC, CSPE Ins, AWM 3191
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 34418 0085000 | Lead Wire, #18 Str TC, CSPE Ins, AWM 3191
Regular price
$1.46
Unit price
Description
Description
Low Temp Rubber Lead Wire, 18AWG (16x30) Tinned Copper, CSPE Insulation, AWM 3191 CSA TYPE CL1053 600V 105C
Specifications
Specifications
Product Overview
| Suitable Applications | Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications |
|---|
Temperature Range
| UL Temp Rating | 105°C |
|---|
Mechanical Characteristics
| Recommended Max Baking Cycles | 24 Hours @ 300°F (149°C) |
|---|---|
| Bulk Cable Weight | 15 lbs/1000ft |
| Min Bend Radius/Minor Axis | 0.57 in |
Standards
| UL AWM Style Compliance | UL AWM Style 3191 |
|---|---|
| CSA Type | CL1053 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
