Brand: Belden
|
SKU:
5MF-1001-B-02

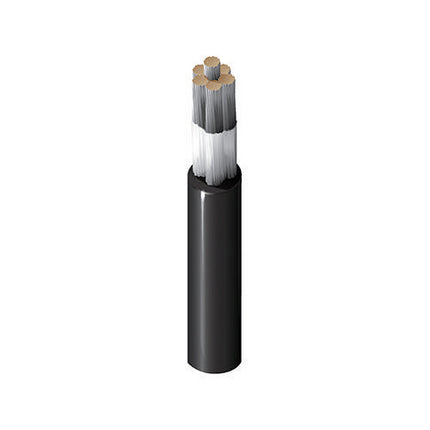

Belden 35610 0102000 | Lead Wire, #10 Str TC, XLPO Ins, AWM 3173
Regular price
$6.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 35610 0102000 | Lead Wire, #10 Str TC, XLPO Ins, AWM 3173
Regular price
$6.29
Unit price
Description
Description
Rubber Lead Wire, 10AWG (65x28) Tinned Copper, XLPO Insulation, AWM 3173 CSA TYPE CL1251 600V 125C
Specifications
Specifications
Product Overview
| Suitable Applications | Class 130(B) motor lead systems, internal wiring of appliances |
|---|
Temperature Range
| UL Temp Rating | 125°C |
|---|
Mechanical Characteristics
| Recommended Max Baking Cycles | 24 Hours @ 300°F (149°C) ~ 12 Hours @ 325°F (163°C) ~ 8 Hours @ 350°F (177°C) |
|---|---|
| Bulk Cable Weight | 41 lbs/1000ft |
| Min Bend Radius/Minor Axis | 0.71 in |
Standards
| UL AWM Style Compliance | UL AWM Style 3173 |
|---|---|
| CSA Type | CL1251 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
