Brand: Belden
|
SKU:
5MG-0201-B-02

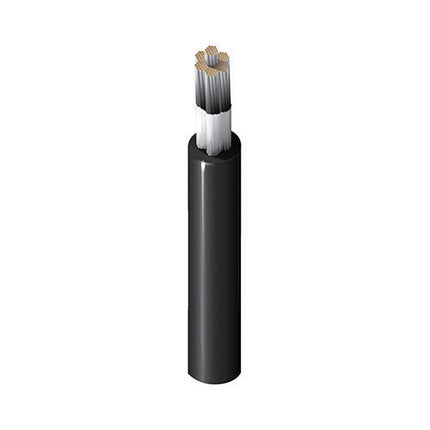

Belden 36102 010500 | Lead Wire, #2 Str TC, CSPE Ins, 5000V
Regular price
$27.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 36102 010500 | Lead Wire, #2 Str TC, CSPE Ins, 5000V
Regular price
$27.68
Unit price
Description
Description
Low Temp Rubber Lead Wire, 2AWG (163x24) Tinned Copper, CSPE Insulation, 5000V
Specifications
Specifications
Product Overview
| Suitable Applications | high voltage applications, Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications |
|---|
Temperature Range
| Non-UL Temp Rating | 105°C |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 368 lbs/1000ft |
|---|---|
| Min Bend Radius/Minor Axis | 9.65 in |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| EU RoHS Compliance Date (yyyy-mm-dd) | 2004-01-01 |
| CA Prop 65 | Yes |
| MII Order #39 (China RoHS) | Yes |
