Brand: Belden
|
SKU:
5MF-1201-EPDMB-03

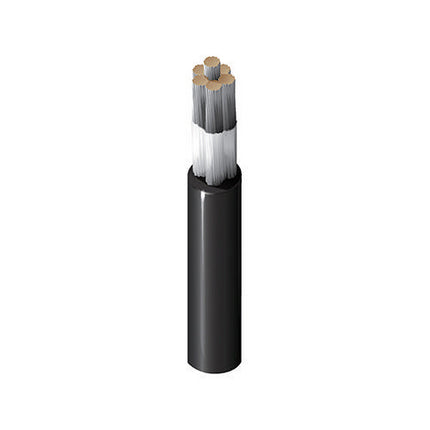

Belden 37112 002500 | Lead Wire, #12 Str TC, EPDM Ins, AWM 3340 AWM 3374
Regular price
$4.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 37112 002500 | Lead Wire, #12 Str TC, EPDM Ins, AWM 3340 AWM...
Regular price
$4.06
Unit price
Brand: Belden
|
SKU:
5MF-1201-EPDMB-03
Regular price
$4.06
Unit price
Shipping calculated at checkout.
Description
Description
Rubber Lead Wire, 12AWG (65x30) Tinned Copper, EPDM Insulation, AWM 3340 AWM 3374 CSA TYPE CL1254 600V 125C FLEX 150C NO FLEX
Specifications
Specifications
Product Overview
| Suitable Applications | Class 130(B), 155(F) and also in some 180(H) motor lead systems, high temperature, internal wiring of appliances |
|---|
Temperature Range
| UL Temp Rating | 150°C |
|---|
Mechanical Characteristics
| Recommended Max Baking Cycles | 24 Hours @ 300°F (149°C) ~ 4 Hours @ 375°F (190°C) |
|---|---|
| Bulk Cable Weight | 33 lbs/1000ft |
| Min Bend Radius/Minor Axis | 0.76 in |
Standards
| UL AWM Style Compliance | UL AWM Styles 3340, 3374 |
|---|---|
| CSA Rating | 600 V, 125°C |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
