Brand: Belden | SKU: 5MF-1401-EPDMB-03-PR

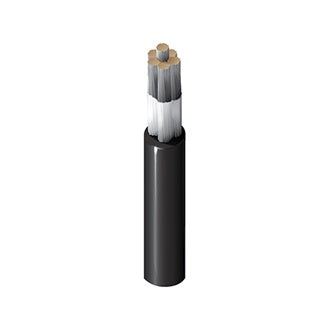

Belden 37114 0024000 | Lead Wire, #14 Stranded TC, EPDM Insulation, AWM 3340 AWM 3374

$2.65

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Belden 37114 0024000 | Lead Wire, #14 Stranded TC, EPDM Insulation, AWM 3340 AWM 3374

Rubber Lead Wire, 14AWG (41x30) Tinned Copper, EPDM Insulation. EPDM high temperature lead wire. 150C EPDM wire is recommended for Class 130(B), 155(F) and also in some 180(H) systems. It’s UL Recognized under Style 3374 as 150C-600V Appliance Wiring Material. The CSA Listing, as a coil lead, is 125C, 600V.

Specifications

Belden - 37114 0024000 - Specifications

Element	Conductor(s)
No. of Elements	1
Size	14 AWG
Stranding	41x30
UL Temperature	150°C
Environmental Suitability	Indoor, Outdoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	Horizontal flame
AWM Compliance	AWM 3340, AWM 3374
CEC / C(UL) Compliance	CL-1254
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Conductor Material	Tinned Copper
Conductor Size	14 Awg (American Wire Gauge)
Conductor Stranding	41 Strands In Each Conductor
Insulation Color	Red
Insulation Material	Epdm-Ethylene Propylene Diene Monomer
Product Type	Ul Styles 3000-3999
Rohs Compliant	Yes
Shielded	Not Shielded
Temperature Rating	150 Degrees Centigrade (302 F)
Ul Style	Ul Type Awm, Style 3340
UNSPC Code	26121539

Documents and Downloads

Belden 37114 0024000 Data Sheet
