Brand: Belden
|
SKU:
5MF-1801-EPDMB-01-PR

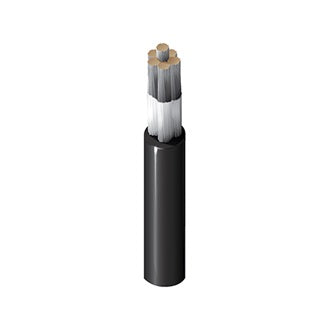

Belden 37118 0095000 | Lead Wire, #18 Stranded TC, EPDM Insulation, AWM 3340 AWM 3374
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 37118 0095000 | Lead Wire, #18 Stranded TC, EPDM Insulation,...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
5MF-1801-EPDMB-01-PR
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
Belden 37118 0095000 | Lead Wire, #18 Stranded TC, EPDM Insulation, AWM 3340 AWM 3374
Rubber Lead Wire, 18AWG (16x30) Tinned Copper, EPDM Insulation, AWM 3340 AWM 3374 CSA TYPE CL1254 600V 125C FLEX 150C NO FLEX. EPDM high temperature lead wire. 150C EPDM wire is recommended for Class 130(B), 155(F) and also in some 180(H) systems. It’s UL Recognized under Style 3374 as 150C-600V Appliance Wiring Material. The CSA Listing, as a coil lead, is 125C, 600V.
Specifications
Specifications
Belden - 37118 0095000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | 16x30 |
| UL Temperature | 150°C |
| Environmental Suitability | Indoor, Outdoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | Horizontal flame |
| AWM Compliance | AWM 3340, AWM 3374 |
| CEC / C(UL) Compliance | CL-1254 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Material | Tinned Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Stranding | 16 Strands In Each Conductor |
| Insulation Color | White |
| Insulation Material | Epdm-Ethylene Propylene Diene Monomer |
| Product Type | Ul Styles 3000-3999 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 150 Degrees Centigrade (302 F) |
| Ul Style | Ul Type Awm, Style 3340 |
| UNSPC Code | 26121539 |
