Brand: Belden | SKU: B39112-0-1000

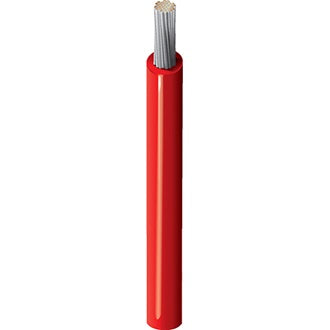

Belden 39112 0101000 | Low Temp Plastic Lead Wire, 12AWG (65x30) Tinned Copper, PPO Insulation, AWM 11028 600V 105C VW-1

$5.44

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Belden 39112 0101000 | Low Temp Plastic Lead Wire, 12AWG (65x30) Tinned Copper, PPO Insulation, AWM 11028 600V 105C VW-1

Specifications

Belden - 39112 0101000 - Specifications

AWG	12
Stranding	65x30
Material	TC - Tinned Copper
No. of Conductors	1
Material	PPO - Polyphenylene Oxide
Nominal Diameter	0.111 in
Nominal Wall Thickness	0.012 in
Nominal Conductor DCR	1.65 Ohm/1000ft
UL Voltage Rating	600 V RMS
UL Temp Rating	105°C
Operating Temperature Range	-40°C To +105°C Dry
Bulk Cable Weight	21.3 lbs/1000ft
Min. Bend Radius/Minor Axis	0.45 in
