Brand: Belden
|
SKU:
B4855R-1000

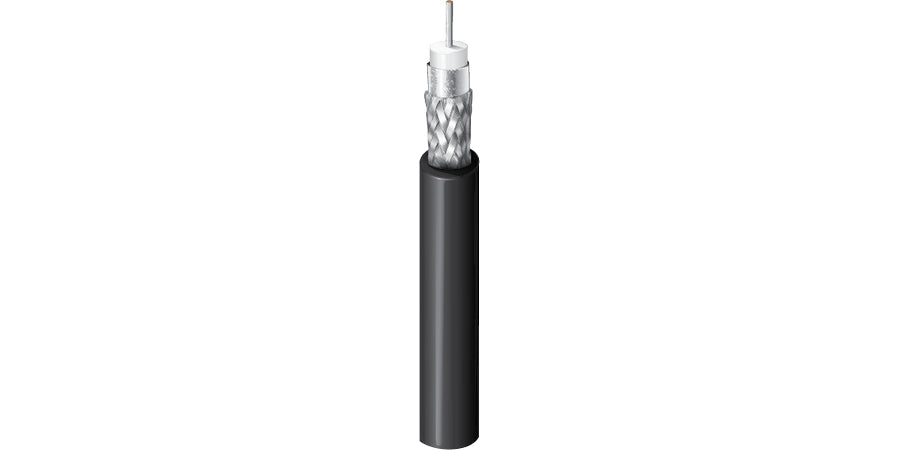

Belden 4855R 0101000 | Video Cable, Mini RG59, 23 AWG, Solid, Silvered Copper, CMR
Regular price
$1,511.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 4855R 0101000 | Video Cable, Mini RG59, 23 AWG, Solid, Silve...
Regular price
$1,511.15
Unit price
Brand: Belden
|
SKU:
B4855R-1000
Regular price
$1,511.15
Unit price
Shipping calculated at checkout.
Description
Description
Belden 4855R 0101000 | Video Cable, Mini RG59, 23 AWG, Solid, Silvered Copper, CMR
Video Cable; Mini RG59; 23 AWG; Solid; Silvered Copper; 1000 ft. Length; Black PVC Jacket; 4500 to 12000MHz; Foam PE Insulation; CMR; 300 V; Tape, Braid; Tri-Laminate, Tinned Copper Shield; -30 to +75 C; 33 lb.; 16.3 pF/ft.
Specifications
Specifications
Belden - 4855R 0101000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 4855R 0101000 - Applications
- Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p
Belden - 4855R 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 4855R 0101000 |
| Item Description | Video Cable, Mini RG59, 23 AWG, Solid, Silvered Copper, CMR |
| Attenuation | 15 Db |
| Bend Radius | 1.6 In. |
| Braid % | 95% Braid Coverage |
| Braid Material | Tinned Copper |
| Csa | Ft-4 Vertical Flame Test - Cables In Cable Trays |
| Cable/Wire Type | Mini Rg59 |
| Capacitance | 16.3 Pf/Ft. |
| Conductor Count | 1 Conductor |
| Conductor Diameter | 0.0230 In. |
| Conductor Material | Solid Silver-Plated Copper |
| Conductor Size | 23 Awg |
| Conductor Type | Solid |
| Dielectric Material | Fpe-Foamed (Cellular) Polyethylene |
| Flooded | No, Not Flooded Over Braid |
| Frequency Rating | 4500 To 12000Mhz |
| Impedance | 75 Ohm |
| Insulation Material | Gas Injected Fhdpe |
| Jacket Color | Black |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cmr, Cmg |
| Length | 1000 Ft. |
| Manufacturer Listed Application | Ultra High Definition Digital Video, 4K Single Link 12 Gb/S Uhdtv, 4K D-Cinema, 8K Quad Link Uhdtv, Hd-Sdi 1080P |
| Material | Silver Coated Copper |
| Nominal O.D. | 4.04 Mm |
| Outdoor | No, Not Outdoor Grade Material |
| Package Type | Reel |
| Plenum | Riser |
| Product Type | 4K Uhd Precision Coaxial Video Cable |
| Pulling Force | 33 Lbs. |
| Resistance | 19.7 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield Type | Both, Braid Over Foil |
| Shield Material | 100% Aluminum Polyester, 95% Tinned Copper Braid |
| Shield Type | Foil And Braid |
| Spec/Stnd Nec | Ul Listed Art 800 Riser |
| Temperature Rating | -30 To 75 Deg C |
| Voltage | 300 V |
| Environmental Suitability | Indoor - Riser, Indoor, Aerial - Black only, When supported by messenger wire |
