Brand: Belden
|
SKU:
B4855RBUHD3

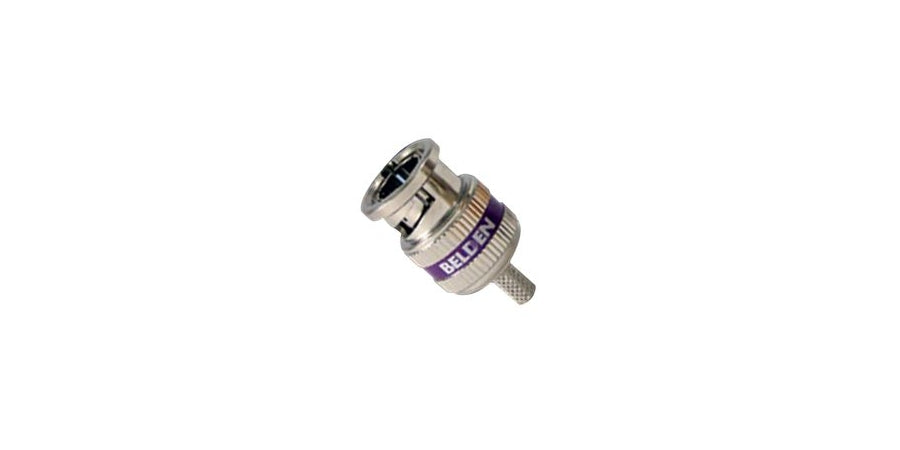

Belden 4855RBUHD3 B50 | Connector, BNC, 3-Piece, Plug, Violet, Mini RG59, 75 Ohm, 4 dB
Regular price
$5.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 4855RBUHD3 B50 | Connector, BNC, 3-Piece, Plug, Violet, Mini...
Regular price
$5.24
Unit price
Description
Description
Belden 4855RBUHD3 B50 | Connector, BNC, 3-Piece, Plug, Violet, Mini RG59, 75 Ohm, 4 dB
Connector; BNC; 3-Piece, Plug; Violet; 0.157 to 0.169 in. Insulation Outside Diameter; Mini RG59; 75 Ohm; 12GHz; Brass; Brass Contact; 4 dB; Crimp; -40 to +140 F; PC; For Use With 4855R, 4855ANH Coaxial Cables
Specifications
Specifications
Belden - 4855RBUHD3 B50 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial Hardware
- Coaxial Connectors
Belden - 4855RBUHD3 B50 - Applications
- HD-SDI, UHD-SDI, Video, Digital Video, SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P
Belden - 4855RBUHD3 B50 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 4855RBUHD3 B50 |
| Item Description | Connector, BNC, 3-Piece, Plug, Violet, Mini RG59, 75 Ohm, 4 dB |
| Body Finish | Pc |
| Cable Insulation O.D. | 0.157 To 0.169 In. |
| Cable Size | Mini Rg-59 |
| Coax Type | Rg-59 |
| Color | Violet |
| Configuration | Bnc |
| Connector Type | Bnc (Male) |
| Contact Material | Brass |
| Contact Plating | Gold Plated |
| Finish | Nickel-Plated |
| For Use With | Belden 4855R, 4855Anh Coaxial Cables, Bb3Phct Crimp Tool |
| Frequency Band | 12Ghz |
| Frequency Rating | 12Ghz |
| Impedance | 75 Ohm |
| Installation | Crimp |
| Material | Brass |
| Package Quantity | 50 |
| Product Type | 3-Piece Straight Coaxial Connector |
| Return Loss | 4 Db |
| Rohs Compliant | Yes |
| Suitable For Use With | 4855R, 4855Anh Coaxial Cables |
| Temperature Rating | -40 To +140 F |
| Termination | Crimp |
| Type | Bnc 75 Ohm |
