Brand: Belden
|
SKU:
B5020FJ-1000

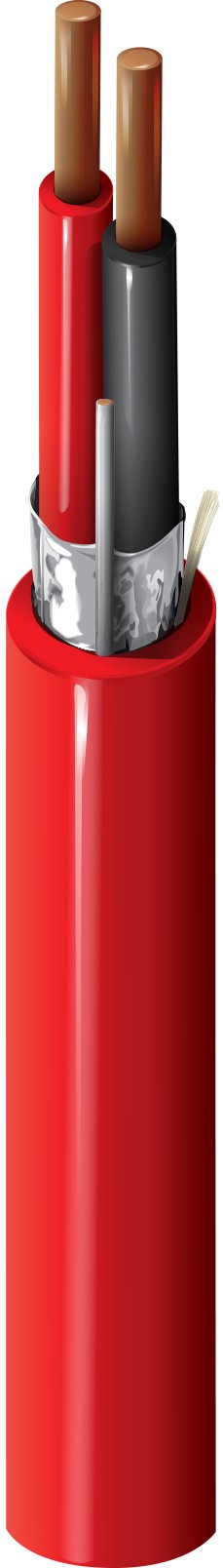

Belden 5020FJ 0021000 | Multi-Conductor - Commercial Applications, Addressable Systems - 2 Cond Cabled 2 12 Awg Fpe Fs PVC Red
Regular price
$1.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5020FJ 0021000 | Multi-Conductor - Commercial Applications, ...
Regular price
$1.74
Unit price
Description
Description
Belden 5020FJ 0021000 | Multi-Conductor - Commercial Applications, Addressable Systems - 2 Cond Cabled 2 12 Awg Fpe Fs PVC Red
12 AWG bare copper conductors, foam high-density polyethylene insulation, cabled together, PVC jacket with ripcord, sequential footage marking every two feet.
Specifications
Specifications
Belden - 5020FJ 0021000 - Applications
- Fire Alarm
- Addressable Systems
- Noisy Environment
Belden - 5020FJ 0021000 - Specifications
| Conductor Count | 2 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 12 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | General Purpose |
| Insulation Material | Fhdpe-Foamed High-Density Polyethylene |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 760 - Fire Alarm |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPSC Code | 26121524 |
| Stranding | Solid |
| Stationary Min. | 4.76 in (121 mm) |
| Installation Min. | 4.76 in |
| Color | Red |
| UPC | 612825155874 |
