Belden 5020FL | Fire Alarm Cable, #12-2C Bare Copper, Shielded, FPLR
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B5020FL-1000/GRY
Regular price
$1.46
Unit price
Description
Description

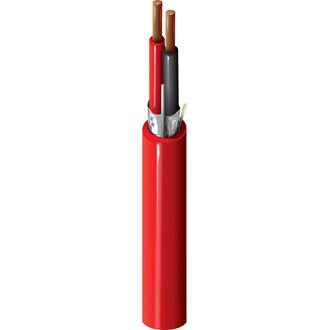

Belden 5020FL | Fire Alarm Cable, #12-2C Bare Copper, Shielded, FPLR
Fire Alarm Cable, Riser-FPLR, 2-12 AWG solid bare copper conductors with polyolefin insulation, overall Beldfoil® shield, PVC jacket with ripcord.
Specifications
Specifications
Belden - 5020FL - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 12 |
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 3.64 in (92.5 mm) |
| Installation Min. | 3.64 in |
| Max. Pull Tension | 170 lbs (77 kg) |
| Bulk Cable Weight | 55 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL 1666 riser |
| NEC / UL Compliance | Article 760, FPLR |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
| Plenum Number | 6020FL |
