Brand: Belden
|
SKU:
B5020UL-1000-0

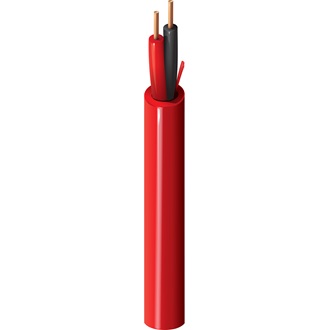

Belden 5020UL 0021000 | Fire Alarm Cable, #12-2C Bare Copper, FPLR
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5020UL 0021000 | Fire Alarm Cable, #12-2C Bare Copper, FPLR
Regular price
$1.46
Unit price
Description
Description
Belden 5020UL 0021000 | Fire Alarm Cable, #12-2C Bare Copper, FPLR
12 AWG bare copper conductors, PP insulation, conductors cabled together, PVC jacket with ripcord, sequential footage marking every two feet.
Specifications
Specifications
Belden - 5020UL 0021000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 1.64 in (41.7 mm) |
| Installation Min. | 1.64 in (41.7 mm) |
| Max. Pull Tension | 158 lbs (71.7 kg) |
| Bulk Cable Weight | 49 lbs/1000ft |
| Environmental Suitability | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire | UL 1666 Riser, IEEE 1202 FT4 |
| NEC / UL Compliance | Article 760, FPLR |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
| Plenum Number | 6020UL |
| Conductor Count | 2 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 12 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Riser |
| Insulation Material | Pp-Polypropylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 760 Riser - Fire Alarm |
| Screen/Shield | No |
| UNSPC Code | 26121524 |
