Belden 5120FL 0021000 | Fire Alarm Cable, #14-2C Bare Copper, Shiel...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B5120FL-1000/BLK
Regular price
$1.46
Unit price
Description
Description

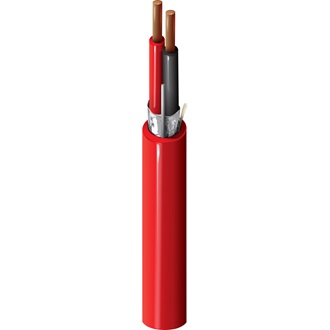

Belden 5120FL 0021000 | Fire Alarm Cable, #14-2C Bare Copper, Shielded, FPLR
14 AWG bare copper conductors, PP insulation, conductors cabled together, Beldfoil shield and drain wire, PVC jacket with ripcord, sequential footage marking every two feet.
Specifications
Specifications
Belden - 5120FL 0021000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 3.075 in (78.11 mm) |
| Installation Min. | 3.075 in (78.11 mm) |
| Max. Pull Tension | 206.6 lbs (93.71 kg) |
| Bulk Cable Weight | 36 lbs/1000ft |
| Environmental Suitability | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire | UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 760, FPLR |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
| Plenum Number | 6120FL |
| Conductor Count | 2 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 14 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Riser |
| Insulation Material | Pp-Polypropylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 760 Riser - Fire Alarm |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
