Brand: Belden | SKU: B5120UL-1000/BRN

Belden 5120UL 0021000 | Fire Alarm Cable, #14-2C Bare Copper, FPLR

$1.46

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

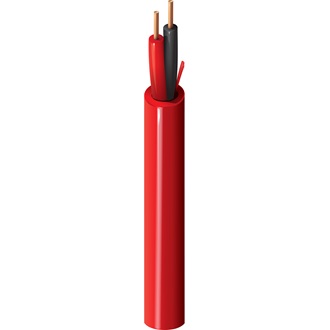

Belden 5120UL 0021000 | Fire Alarm Cable, #14-2C Bare Copper, FPLR

14 AWG bare copper conductors, PP insulation, conductors cabled together, PVC jacket with ripcord, sequential footage marking every two feet.

Specifications

Belden - 5120UL 0021000 - Specifications

Element	Conductor(s)
Stranding	Solid
UL Temperature	75°C
Stationary Min.	1.64 in (41.7 mm)
Installation Min.	1.64 in (41.7 mm)
Max. Pull Tension	99 lbs (45 kg)
Bulk Cable Weight	33 lbs/1000ft
Environmental Suitability	Indoor - Riser, Indoor
Flammability / Reaction to Fire	UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 760, FPLR
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	6120UL
Conductor Count	2 Conductors
Conductor Material	Bare Copper
Conductor Size	14 Awg (American Wire Gauge)
Conductor Type	Solid Conductor
Fire Rating	Riser
Insulation Material	Pp-Polypropylene
Jacket Material	PVC-Polyvinyl Chloride
Nec Rating	Ul Listed Art 760 Riser - Fire Alarm
Screen/Shield	No
UNSPC Code	26121613

Documents and Downloads

Belden 5120UL 0021000 Data Sheet
