Brand: Belden
|
SKU:
B5120UL-1000/GRN
Belden 5120UL | Fire Alarm Cable, #14-2C Bare Copper, FPLR
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5120UL | Fire Alarm Cable, #14-2C Bare Copper, FPLR
Regular price
$1.47
Unit price
Brand: Belden
|
SKU:
B5120UL-1000/GRN
Regular price
$1.47
Unit price
Shipping calculated at checkout.
Description
Description
Belden 5120UL | Fire Alarm Cable, #14-2C Bare Copper, FPLR

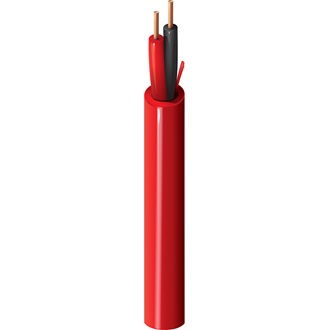

Fire Alarm Cable, Riser-FPLR, 2-14 AWG solid bare copper conductors with polypropylene insulation, PVC jacket with ripcord.
Specifications
Specifications
Belden - 5120UL - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 14 AWG |
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 1.64 in (41.7 mm) |
| Installation Min. | 1.64 in (41.7 mm) |
| Max. Pull Tension | 99 lbs (45 kg) |
| Bulk Cable Weight | 33 lbs/1000ft |
| Environmental Suitability | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire | UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 760, FPLR |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6120UL |
