Brand: Belden
|
SKU:
B5140F1-1000
Belden 5140F1 0101000 | Multi-Conductor - Water-Blocked For Use In Underground Ducts 1 Fs Pr 14 Awg PVC Pvc Black
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5140F1 0101000 | Multi-Conductor - Water-Blocked For Use In ...
Regular price
$1.46
Unit price
Description
Description

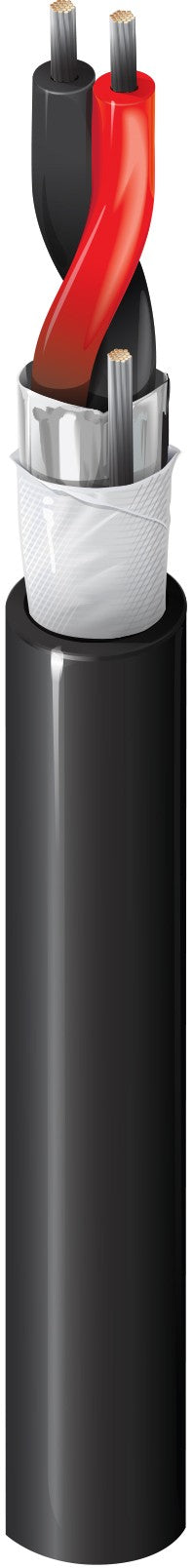

Belden 5140F1 0101000 | Multi-Conductor - Water-Blocked For Use In Underground Ducts 1 Fs Pr 14 Awg PVC Pvc Black
14 AWG stranded (19x27) tinned copper conductors, PVC insulation, Beldfoil shield (100% coverage), drain wire, water-blocking tape, PVC jacket.
Specifications
Specifications
Belden - 5140F1 0101000 - Applications
- Security System
- Intercom/Pa
- Audio/Speaker
- Fire Alarm (Red Jkt)
- Power-Limited Controls
- Noisy and Wet Location
- Below-Grade Duct
Belden - 5140F1 0101000 - Specifications
| Conductor Count | 1 Pair |
|---|---|
| Conductor Material | Tinned Copper |
| Conductor Size | 14 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 760 - Fire Alarm |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPSC Code | 26121524 |
| Stranding | 19x26 |
| UL Temperature | 105°C |
| Operating Temperature | -20°C to +105°C |
| Stationary Min. | 3.3 in (84 mm) |
| Installation Min. | 3.3 in (84 mm) |
| Bulk Cable Weight | 61 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| Color | Black |
| UPC | 612825157151 |
