Brand: Belden
|
SKU:
B5140U1-1000/BLU

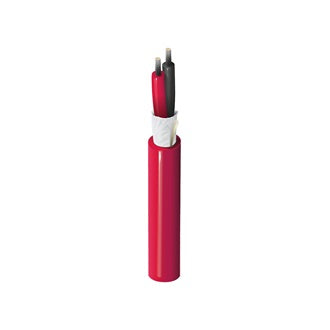

Belden 5140U1 0101000 | Security & Sound Cable, #14-1 Pair, TC, CL3-FPL-PLTC, Water-Blocked
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5140U1 0101000 | Security & Sound Cable, #14-1 Pair, TC,...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B5140U1-1000/BLU
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
Belden 5140U1 0101000 | Security & Sound Cable, #14-1 Pair, TC, CL3-FPL-PLTC, Water-Blocked
Security & Sound Cable, Rated-CL3-FPL-PLTC, 1-14 AWG stranded tinned copper pair with PVC insulation, Waterblocking tape, PVC jacket.
Specifications
Specifications
Belden - 5140U1 0101000 - Specifications
| Element | Pair(s) |
|---|---|
| Stranding | 19x26 |
| UL Temperature | 105°C |
| Stationary Min. | 3.6 in (91 mm) |
| Installation Min. | 3.6 in (91 mm) |
| Max. Pull Tension | 95 lbs (43 kg) |
| Bulk Cable Weight | 59 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEEE 1202, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, Article 760, Article 800 |
| CEC / C(UL) Compliance | CL3 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Copper |
| Conductor Size | 14 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 760 - Fire Alarm |
| Screen/Shield | No |
| UNSPC Code | 26121524 |
