Brand: Belden
|
SKU:
B5200FE-U1000

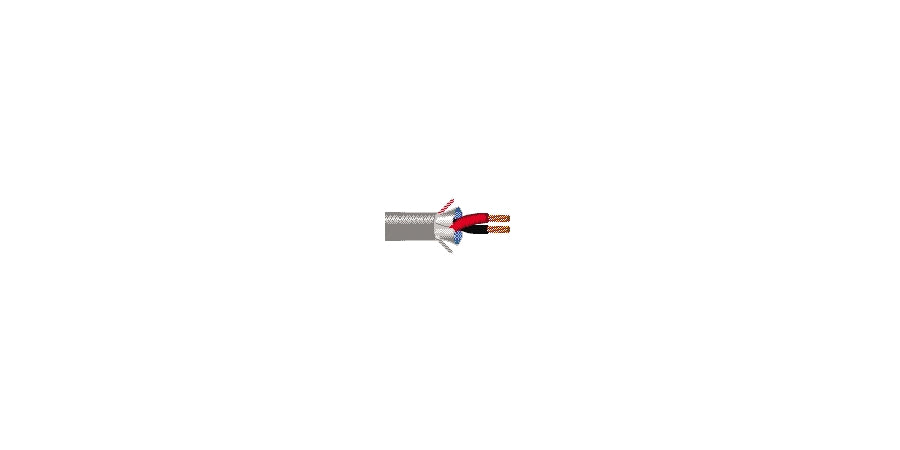

Belden 5200FE 008U1000 | Audio Cable, 16 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Regular price
$649.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5200FE 008U1000 | Audio Cable, 16 AWG, Stranded, 2, Bare Cop...
Regular price
$649.15
Unit price
Brand: Belden
|
SKU:
B5200FE-U1000
Regular price
$649.15
Unit price
Shipping calculated at checkout.
Description
Description
Belden 5200FE 008U1000 | Audio Cable, 16 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Audio Cable; 16 AWG; Stranded; 2 Conductor; Bare Copper; 1000 ft. Length; 19x29 Str; Gray PVC with Ripcord Jacket; Polypropylene Insulation; Riser, CMR; 300 V; Black, Red; Tape; Bi-Laminate Shield; -20 to +75 C; 85.5 lb.
Specifications
Specifications
Belden - 5200FE 008U1000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 5200FE 008U1000 - Applications
- Security System, Intercom/PA, Audio/Speaker, Noisy Environment
Belden - 5200FE 008U1000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 5200FE 008U1000 |
| Item Description | Audio Cable, 16 AWG, Stranded, 2, Bare Copper, 1000 ft. L |
| Amperage | 6.25 A |
| Approval Listings | Nec Type Cmr, Cec Type Cmg |
| Bend Radius | 1.9 In. |
| Csa | Ft-4 Vertical Flame Test - Cables In Cable Trays |
| Capacitance | 58 Pf/Ft. |
| Color Code | Black, Red |
| Conductor Count | 2 Conductor |
| Conductor Material | Bare Copper |
| Conductor Size | 16 Awg |
| Conductor Stranding | 19 Strands Per Conductor |
| Conductor Type | Stranded |
| Construction | Overall Shield &Amp Drain |
| Inductance | 0.14 ?h/Ft. |
| Insulation Material | Pp-Polypropylene |
| Jacket Color | Gray |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cmr |
| Length | 1000 Ft. |
| Nec Rating | Ul Listed Art 800 Riser |
| Nominal O.D. | 0.184 In. |
| Package Type | Reel |
| Plenum | Riser |
| Product Type | Security And Sound Commercial Audio Cable |
| Pulling Force | 85.5 Lbs. |
| Resistance | 4 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | Yes |
| Shield Material | Alum Foil-Polyester 100% |
| Shield Type | Overall Braid Shield |
| Shielded | Stp-Shielded Twisted Pair |
| Temperature Rating | 75 Deg C |
| Thickness | 0.017 In. |
| Type | Security And Commercial Audio Cable |
| Voltage | 300 V |
| Environmental Suitability | Indoor - Riser, Indoor |
