Description
Description

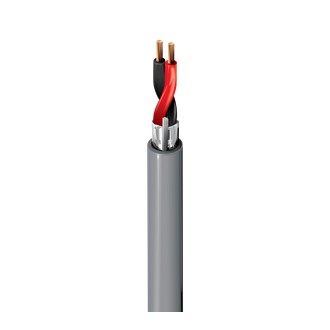

Belden 5200FE | Security & Sound Cable, 2 Conductor 16 AWG, Bare Copper, Shielded, CMR
Security & Commercial Audio Cable, Riser-CMR, 2-16 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord.
Specifications
Specifications
Belden - 5200FE - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 16 AWG |
| Stranding | 19x29 |
| UL Temperature | 75°C |
| Stationary Min. | 1.9 in (48 mm) |
| Installation Min. | 1.9 in (48 mm) |
| Max. Pull Tension | 85.5 lbs (38.8 kg) |
| Bulk Cable Weight | 24 lbs/1000ft |
| Environmental Suitability | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire | UL 1666 Riser, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6200FE |
