Brand: Belden
|
SKU:
B5201UE-1000-DYBLK
Belden 5201UE | Security & Sound Cable, 3 Conductor 16 AWG, Bare Copper, CMR
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5201UE | Security & Sound Cable, 3 Conductor 16 AWG, Bar...
Regular price
$1.47
Unit price
Brand: Belden
|
SKU:
B5201UE-1000-DYBLK
Regular price
$1.47
Unit price
Shipping calculated at checkout.
Description
Description

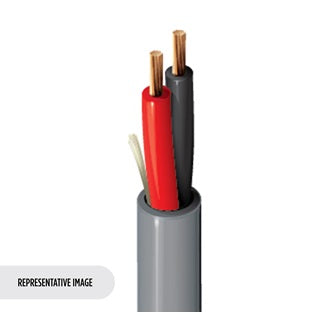

Belden 5201UE | Security & Sound Cable, 3 Conductor 16 AWG, Bare Copper, CMR
Security & Commercial Audio Cable, Riser-CMR, 3-16 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord.
Specifications
Specifications
Belden - 5201UE - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 3 |
| Size | 16 AWG |
| Stranding | 19x29 |
| UL Temperature | 75°C |
| Stationary Min. | 1.9 in (48 mm) |
| Installation Min. | 1.9 in (48 mm) |
| Max. Pull Tension | 88 lbs (40 kg) |
| Bulk Cable Weight | 32 lbs/1000ft |
| Environmental Suitability | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire | UL 1666 Riser, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6201UE |
