Brand: Belden
|
SKU:
B5202F1-1000-M

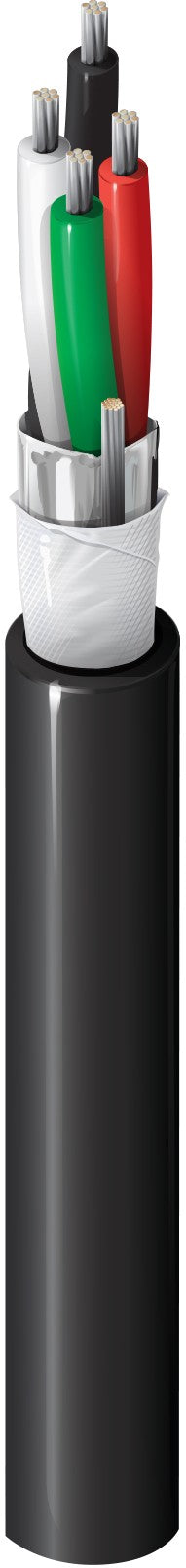

Belden 5202F1 0101000 | Security & Sound, #16-4c, TC, Shielded, CMG-FPL-PLTC-ER, Water-Blocked
Regular price
$4.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5202F1 0101000 | Security & Sound, #16-4c, TC, Shielded,...
Regular price
$4.64
Unit price
Description
Description
Belden 5202F1 0101000 | Security & Sound, #16-4c, TC, Shielded, CMG-FPL-PLTC-ER, Water-Blocked
Security &Amp Sound Cable, Rated-Cmg-Fpl-Pltc, 4-16 Awg Stranded Tinned Copper Conductors With Pvc Insulation, Waterblocking Tape, Beldfoil® Shield And Pvc Jacket
Specifications
Specifications
Belden - 5202F1 0101000 - Specifications
| Conductor Count | 4 CONDUCTORS |
|---|---|
| Conductor Material | Tinned Copper |
| Conductor Size | 16 AWG (AMERICAN WIRE GAUGE) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | UL LISTED ART 760 - FIRE ALARM |
| Screen/Shield Type | FOIL SHIELDED - ALUM/MYLAR |
| Screen/Shield | YES |
| Shield Construction | Overall Shield & Drain |
| UNSPSC Code | 26121524 |
| Suitable Applications | Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct |
| No. of Elements | 4 |
| Size | 16 |
| Stranding | 7x24 |
| Material | TC - Tinned Copper |
