Brand: Belden
|
SKU:
B5202U1-1000
Belden 5202U1 0101000 | Multi-Conductor - Water-Blocked For Indoor/Outdoor Use 4 16 Awg PVC Pvc Black
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5202U1 0101000 | Multi-Conductor - Water-Blocked For Indoor/...
Regular price
$1.46
Unit price
Description
Description

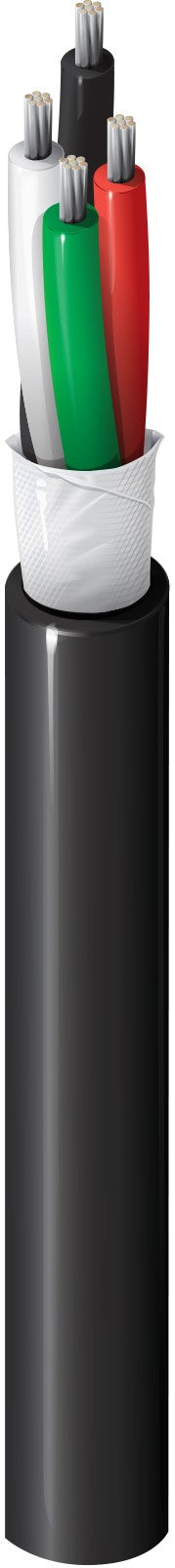

Belden 5202U1 0101000 | Multi-Conductor - Water-Blocked For Indoor/Outdoor Use 4 16 Awg PVC Pvc Black
16 AWG stranded (7x24) tinned copper conductors, PVC insulation, water-blocking tape, overall PVC jacket.
Specifications
Specifications
Belden - 5202U1 0101000 - Applications
- Security System
- Intercom/Pa
- Audio/Speaker
- Power-Limited Controls
- Wet Location
- Below-Grade Duct
Belden - 5202U1 0101000 - Specifications
| Conductor Count | 4 Conductors |
|---|---|
| Conductor Material | Tinned Copper |
| Conductor Size | 16 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 760 - Fire Alarm |
| Screen/Shield | No |
| UNSPSC Code | 26121524 |
| Stranding | 7x24 |
| Environmental Suitability | Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial |
| Flammability / Reaction to Fire | UL1685 FT4 Loading, FT4, IEEE 1202 Vertical Tray Flame Test |
| Color | Black |
| UPC | 612825158172 |
