Brand: Belden
|
SKU:
B5220FJ-1000/WHT/GRN
Belden 5220FJ 0021000 | Fire Alarm Cable, #16-2C Bare Copper, Shielded, FPL
Regular price
$1.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5220FJ 0021000 | Fire Alarm Cable, #16-2C Bare Copper, Shiel...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B5220FJ-1000/WHT/GRN
Regular price
$1.46
Unit price
Description
Description
Belden 5220FJ 0021000 | Fire Alarm Cable, #16-2C Bare Copper, Shielded, FPL

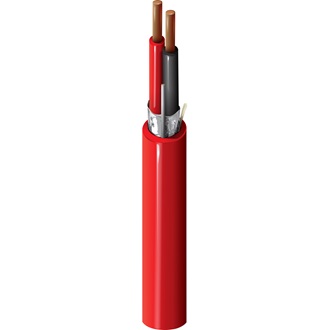

Fire Alarm Cable, Rated-FPL, 2-16 AWG solid bare copper conductors with foam polyolefin insulation, overall Beldfoil® shield, PVC jacket with ripcord.
Specifications
Specifications
Belden - 5220FJ 0021000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 16 AWG |
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 3.52 in (89.4 mm) |
| Installation Min. | 3.52 in |
| Max. Pull Tension | 75 lbs (34 kg) |
| Bulk Cable Weight | 33 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL1685 UL Loading |
| NEC / UL Compliance | Article 760, FPL |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6220FJ |
| UNSPC Code | 26121613 |
