Belden 5220FL 0021000 | Fire Alarm Cable, #16-2C Bare Copper, Shiel...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B5220FL-1000/WHT
Regular price
$1.46
Unit price
Description
Description

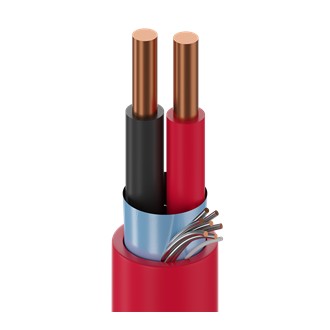

Belden 5220FL 0021000 | Fire Alarm Cable, #16-2C Bare Copper, Shielded, FPLR
Fire Alarm Cable, Riser-FPLR, 2-16 AWG solid bare copper conductors with polypropylene insulation, overall Beldfoil® shield, PVC jacket with ripcord.
Specifications
Specifications
Belden - 5220FL 0021000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 1.7 in (43 mm) |
| Installation Min. | 1.7 in (43 mm) |
| Max. Pull Tension | 75 lbs (34 kg) |
| Bulk Cable Weight | 23 lbs/1000ft |
| Environmental Suitability | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire | UL 1666 Riser, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 760, FPLR |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6220FL |
| Conductor Count | 2 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 16 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Riser |
| Insulation Material | Pp-Polypropylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 760 Riser - Fire Alarm |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
