Brand: Belden
|
SKU:
B5220UL-009-U1000-DY
Belden 5220UL 009U1000 | Fire Alarm Cable, #16-2C Bare Copper, FPLR
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5220UL 009U1000 | Fire Alarm Cable, #16-2C Bare Copper, FPLR
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B5220UL-009-U1000-DY
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
Belden 5220UL 009U1000 | Fire Alarm Cable, #16-2C Bare Copper, FPLR

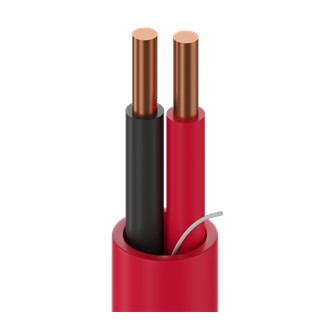

Fire Alarm Cable, Riser-FPLR, 2-16 AWG solid bare copper conductors with polyolefin insulation, PVC jacket with ripcord.
Specifications
Specifications
Belden - 5220UL 009U1000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 16 |
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 1.32 in (33.5 mm) |
| Installation Min. | 1.32 in (33.5 mm) |
| Max. Pull Tension | 62.4 lbs (28.3 kg) |
| Bulk Cable Weight | 21 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL 1666 riser, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 760, FPLR |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6220UL |
