Brand: Belden
|
SKU:
B5222FL-1000
Belden 5222FL 0021000 | Multi-Conductor - Commercial Applications 4 16 Awg Pp Fs Frpvc Red
Regular price
$1.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5222FL 0021000 | Multi-Conductor - Commercial Applications 4...
Regular price
$1.74
Unit price
Description
Description
Belden 5222FL 0021000 | Multi-Conductor - Commercial Applications 4 16 Awg Pp Fs Frpvc Red

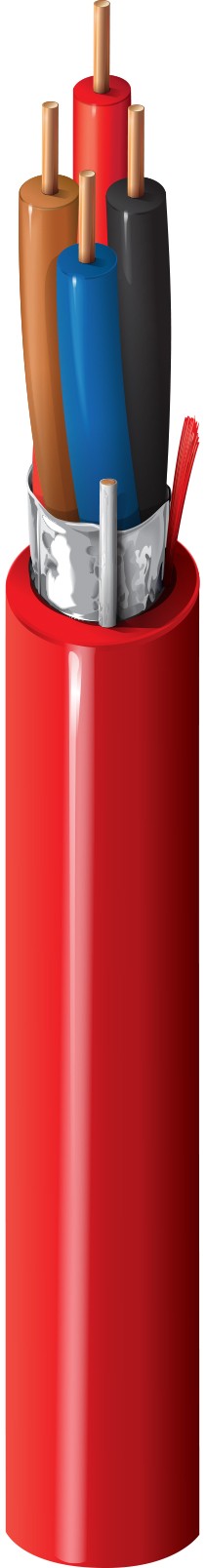

16 AWG bare copper conductors, PVC insulation, conductors cabled together, Beldfoil shield and drain wire, PVC jacket with ripcord, sequential footage marking every two feet.
Specifications
Specifications
Belden - 5222FL 0021000 - Applications
- Fire Alarm
- Monitor/Detection
- Noisy Environment
Belden - 5222FL 0021000 - Specifications
| Conductor Count | 4 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 16 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Riser |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 760 Riser - Fire Alarm |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPSC Code | 26121524 |
| Stranding | Solid |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL 1666 riser |
| Color | Red |
| UPC | 612825158523 |
