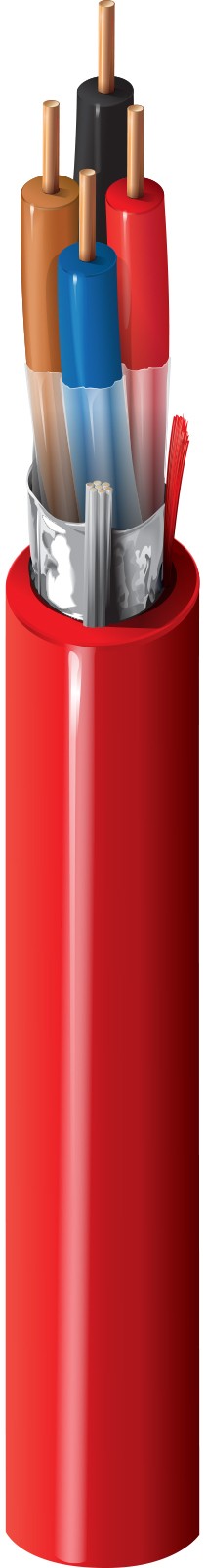

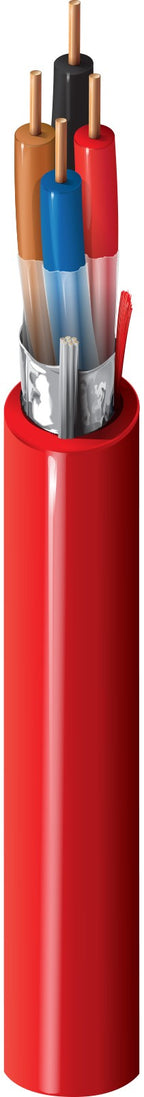

Belden 5222FN 0021000 | Fire Alarm, #16-4c BC, Shielded, NPLF
Regular price
$1.74
Unit price
Brand: Belden
|
SKU:
B5222FN-1000
Regular price
$1.74
Unit price
Description
Description
Belden 5222FN 0021000 | Fire Alarm, #16-4c BC, Shielded, NPLF
Specifications
Specifications
Belden - 5222FN 0021000 - Applications
- Fire Alarm
- Non-Power Limited
- Noisy Environment
Belden - 5222FN 0021000 - Specifications
| Stranding | Solid |
|---|---|
| Material | BC - Bare Copper |
| No. of Conductors | 4 |
| Nom. Capacitance Conductor to Conductor | 33 pF/ft |
| Nom. Capacitance Conductor to Other Conductor to Shield | 59.3 pF/ft |
| Max. Recommended Current [A] | 5 Amps per Conductor at 25ºC |
| UL Temp Rating | 75°C |
| Operating Temperature Range | -20°C To +75°C |
| Color | Red |
| UPC | 612825158547 |
