Description
Description

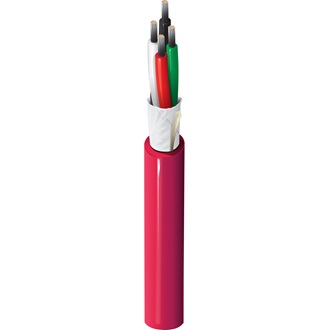

Belden 5302U1 0101000 | Security & Sound Cable, #18-4C, TC, CMG-FPL-PLTC, Water-Blocked
Security & Sound Cable, Rated-CMG-FPL-PLTC, 4-18 AWG stranded tinned copper conductors with PVC insulation, Waterblocking tape, PVC jacket.
Specifications
Specifications
Belden - 5302U1 0101000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | 7x26 |
| UL Temperature | 105°C |
| Stationary Min. | 3.1 in (79 mm) |
| Installation Min. | 3.1 in (79 mm) |
| Max. Pull Tension | 89 lbs (40 kg) |
| Bulk Cable Weight | 40 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance |
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4, IEEE 1202 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 725, Article 760, Article 800 |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| Conductor Count | 4 Conductors |
| Conductor Material | Tinned Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 760 - Fire Alarm |
| Screen/Shield | No |
| UNSPC Code | 26121524 |
