Belden 5302UE 008500 | Security & Sound Cable, #18-4C, Bare Cop...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B5302UE-500-DY1
Regular price
$1.46
Unit price
Description
Description

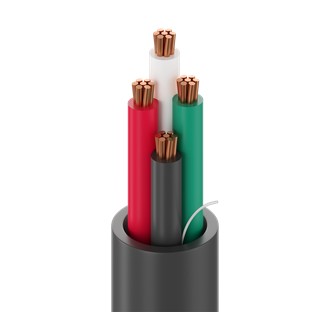

Belden 5302UE 008500 | Security & Sound Cable, #18-4C, Bare Copper, CMR
Security & Sound Cable, Riser-CMR, 4-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord.
Specifications
Specifications
Belden - 5302UE 008500 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | 7x26 |
| UL Temperature | 75°C |
| Stationary Min. | 1.84 in (46.7 mm) |
| Installation Min. | 1.84 in (46.7 mm) |
| Max. Pull Tension | 90 lbs (41 kg) |
| Bulk Cable Weight | 35 lbs/1000ft |
| Environmental Suitability | Indoor, Outdoor |
| Flammability / Reaction to Fire | UL1666 Riser, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6302UE |
| Conductor Count | 4 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Riser |
| Insulation Material | Pp-Polypropylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 Riser |
| Screen/Shield | No |
| UNSPC Code | 26121524 |
