Belden 5320FJ 0021000 | Fire Alarm Cable, #18-2C Bare Copper, Shiel...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B5320FJ-1000-3
Regular price
$1.46
Unit price
Description
Description

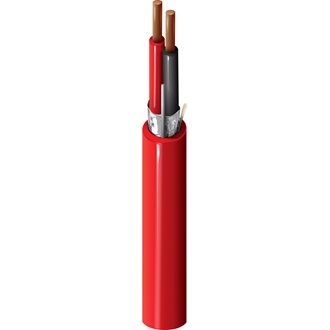

Belden 5320FJ 0021000 | Fire Alarm Cable, #18-2C Bare Copper, Shielded, FPL
Fire Alarm Cable, Rated-FPL, 2-18 AWG solid bare copper conductors with foam polyolefin insulation, overall Beldfoil® shield, PVC jacket with ripcord.
Specifications
Specifications
Belden - 5320FJ 0021000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 3.165 in (80.39 mm) |
| Installation Min. | 3.165 in |
| Max. Pull Tension | 51.8 lbs (23.5 kg) |
| Bulk Cable Weight | 25 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | UL1685 UL Loading |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 760, FPL |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| UNSPC Code | 26121613 |
Documents and Downloads
Documents and Downloads
