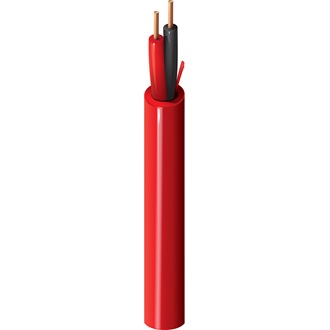

Belden 5320UJ 002U1000 | Fire Alarm Cable, #18-2C Bare Copper, FPL
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B5320UJ-U1000/BLK
Regular price
$1.46
Unit price
Description
Description
Belden 5320UJ 002U1000 | Fire Alarm Cable, #18-2C Bare Copper, FPL
Fire Alarm Cable, Rated-FPL, 2-18 AWG solid bare copper conductors with foam polyethylene insulation, PVC jacket with ripcord.
Specifications
Specifications
Belden - 5320UJ 002U1000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 1.64 in (41.7 mm) |
| Installation Min. | 1.64 in (41.7 mm) |
| Max. Pull Tension | 39.2 lbs (17.8 kg) |
| Bulk Cable Weight | 20 lbs/1000ft |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
| Flammability / Reaction to Fire | UL 1685 UL loading |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 760, FPL |
| European Directive Compliance | EU CE Mark |
| UK Regulation Compliance | UKCA Mark |
| Plenum Number | 6320UJ |
| Conductor Count | 2 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | General Purpose |
| Insulation Material | FhdPE-Foamed High-Density Polyethylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 760 - Fire Alarm |
| Screen/Shield | No |
| UNSPC Code | 26121613 |
