Brand: Belden
|
SKU:
B5320UL-1000

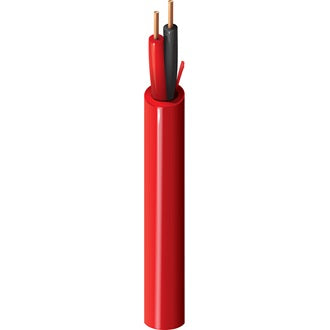

Belden 5320UL 0021000 | Multi-Conductor - Commercial Applications - 2 Conductors Cabled 2 18 Awg PP FRPVC Red
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5320UL 0021000 | Multi-Conductor - Commercial Applications -...
Regular price
$1.46
Unit price
Description
Description
Belden 5320UL 0021000 | Multi-Conductor - Commercial Applications - 2 Conductors Cabled 2 18 Awg PP FRPVC Red
18 AWG bare copper conductors, PP insulation, conductors cabled together, PVC jacket with ripcord, sequential footage marking every two feet.
Specifications
Specifications
Belden - 5320UL 0021000 - Applications
- Fire Alarm
- Monitor/Detection
Belden - 5320UL 0021000 - Specifications
| Conductor Count | 2 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Riser |
| Insulation Material | PP-Polypropylene |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 760 Riser - Fire Alarm |
| Screen/Shield | No |
| UNSPSC Code | 26121613 |
| Size | 18 AWG |
| Stranding | Solid |
| Environmental Suitability | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire | UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 |
