Brand: Belden
|
SKU:
B5324UL-1000

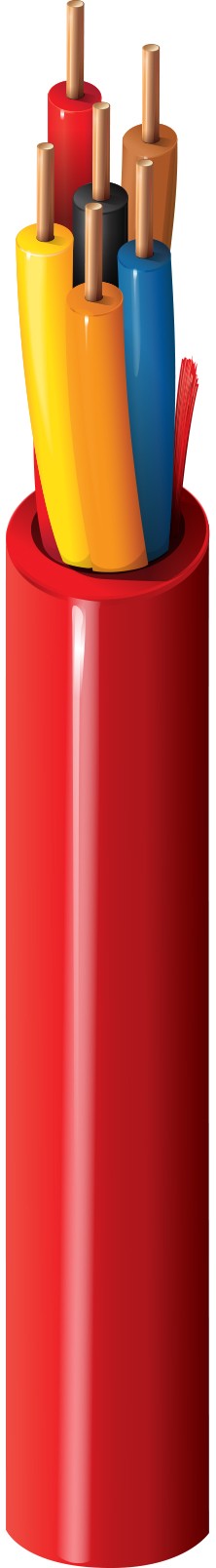

Belden 5324UL 0021000 | Fire Alarm Cable, 6 Solid Bare Copper Conductors with Polyolefin Insulation, Red PVC Jacket
Regular price
$1.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5324UL 0021000 | Fire Alarm Cable, 6 Solid Bare Copper Condu...
Regular price
$1.76
Unit price
Description
Description
Belden 5324UL 0021000 | Fire Alarm Cable, 6 Solid Bare Copper Conductors with Polyolefin Insulation, Red PVC Jacket
Unshielded multi-conductor, power-limited Fire Alarm cable for commercial applications, FPLR/CMG FT4 rated. Bare copper conductors, PVC insulation, conductors cabled together, red PVC jacket with rip cord. Sequential footage marking every two feet. Suitable for fire protection, alarm, signal, monitor/detection, audio circuits, control circuits, initiating circuits, and notification circuits.
Specifications
Specifications
Belden - 5324UL 0021000 - Applications
- Fire Alarm
- Monitor/Detection
Belden - 5324UL 0021000 - Specifications
| Conductor Count | 6 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Riser |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 760 Riser - Fire Alarm |
| Screen/Shield | No |
| UNSPSC Code | 26121613 |
| No. of Elements | 6 |
| Stranding | Solid |
| Stationary Min. | 1.58 in (40.1 mm) |
| Installation Min. | 1.58 in |
| Color | Red |
