Belden 5342FE 0081000 | Multi-Conductor Cable, 18 Awg, 3-Pair Bare Copper Conductors, PVC Insulation
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5342FE 0081000 | Multi-Conductor Cable, 18 Awg, 3-Pair Bare ...
Description
Description

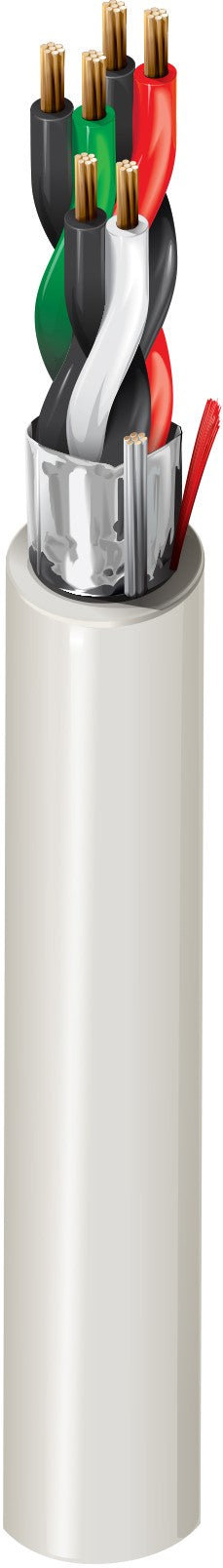

18 AWG bare copper conductors, PVC insulation, conductors twisted into pairs, multiple pairs cabled together, overall Beldfoil shield (foil side out) and drain wire, overall PVC jacket with rip cord. Sequential footage marking every two feet. Belden’s wide array of audio cables range from high-performance, low-capacitance and digital audio types for optimum signal delivery, to cables manufactured to basic industry specifications for commercial use, short runs and non-mission critical applications. Belden pioneered the Easy Strip foil bonded to the jacket for ease of installation and now offers this feature on digital cables, plenum cables and 2-pair versions. Many cables are suitable for RS-422 and RS-485 applications.
Specifications
Specifications
Belden - 5342FE 0081000 - Applications
- Security System
- Intercom/Pa
- Audio/Speaker
- Power-Limited Controls
- Noisy Environment
Belden - 5342FE 0081000 - Specifications
| Conductor Count | 3 Pairs |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Riser |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 Riser |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPSC Code | 26121524 |
| Stranding | 7x26 |
| Flammability / Reaction to Fire | UL 1666 riser, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| Color | Gray |
| UPC | 612825161240 |
