Brand: Belden
|
SKU:
B5407FE-1000
Belden 5407FE 0081000 | Multi-Conductor - Commercial Applications 9 20 Awg Pp Fs Frpvc Gray
Regular price
$1.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5407FE 0081000 | Multi-Conductor - Commercial Applications 9...
Regular price
$1.74
Unit price
Description
Description
Belden 5407FE 0081000 | Multi-Conductor - Commercial Applications 9 20 Awg Pp Fs Frpvc Gray

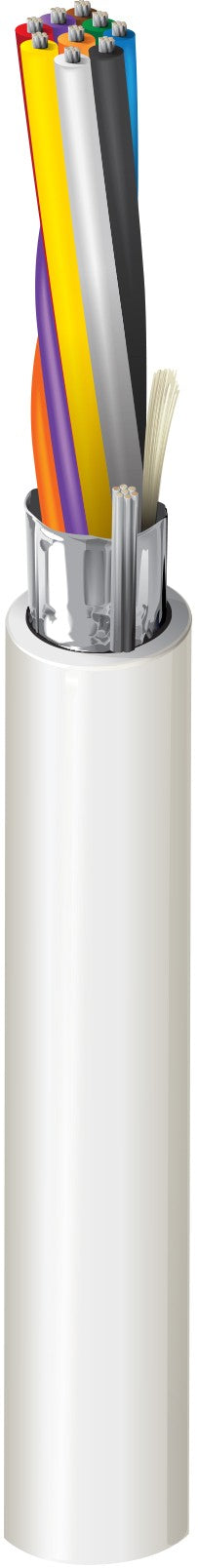

20 AWG bare copper conductors, PP insulation, cabled, Beldfoil shield tape (foil side out) with drain wire, PVC jacket with ripcord. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 5407FE 0081000 - Applications
- Security System
- Intercom/Pa
- Audio/Speaker
- Power-Limited Controls
- Noisy Environment
Belden - 5407FE 0081000 - Specifications
| Conductor Count | 9 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 20 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Riser |
| Insulation Material | Pp-Polypropylene |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 Riser |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPSC Code | 26121524 |
| Stranding | 7x28 |
| Stationary Min. | 2.2 in (56 mm) |
| Installation Min. | 2.2 in |
| Color | Gray |
| UPC | 612825162285 |
