Brand: Belden
|
SKU:
B543945-1000
Belden 543945 0101000 | Coax - Surveillance And CCTV Applications Rg-59/U Coax Black
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 543945 0101000 | Coax - Surveillance And CCTV Applications R...
Regular price
$1.46
Unit price
Description
Description
Belden 543945 0101000 | Coax - Surveillance And CCTV Applications Rg-59/U Coax Black

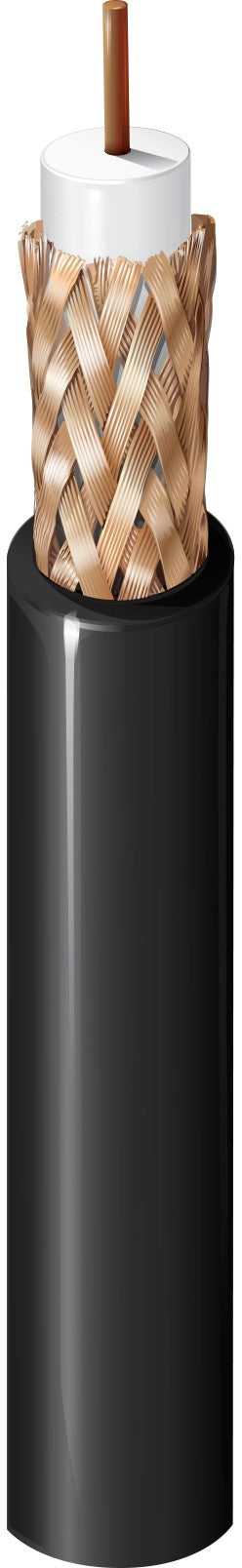

20 AWG solid bare copper conductor, foam polyethylene insulation, bare copper braid shield, PVC jacket, sequential footage marking every two feet.
Specifications
Specifications
Belden - 543945 0101000 - Applications
- Surveillance CCTV Camera
Belden - 543945 0101000 - Specifications
| Coax Construction | Coaxial |
|---|---|
| Coax Type | Rg 59 |
| Conductor Material | Bare Copper |
| Screen/Shield Type | Braid Only |
| Conductor Type | Solid Conductor |
| Dielectric Material | Fpe-Foamed (Cellular) Polyethylene |
| Fire Rating | General Purpose (Cm, Cmg, Cmx) |
| Flooded | No Not Flooded Over Braid |
| Impedance | 75 Ohm Nominal Impedance |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Outdoor | Yes Is Outdoor Grade Material |
| UNSPSC Code | 26121606 |
| UL Voltage Rating | 300 V |
| Bulk Cable Weight | 29 lbs/1000ft |
