Brand: Belden
|
SKU:
B5442FE-1000

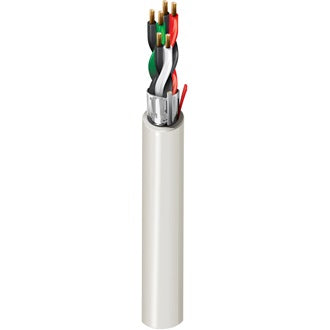

Belden 5442FE 0081000 | Multi-Conductor - Commercial Applications 3-Pair 20 Awg PP FS FRPVC Gray
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5442FE 0081000 | Multi-Conductor - Commercial Applications 3...
Regular price
$1.46
Unit price
Description
Description
Belden 5442FE 0081000 | Multi-Conductor - Commercial Applications 3-Pair 20 Awg PP FS FRPVC Gray
20 AWG bare copper conductors, PVC insulation, conductors twisted into pairs, multiple pairs cabled together, overall Beldfoil shield (foil side out) and drain wire, overall PVC jacket with rip cord. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 5442FE 0081000 - Applications
- Security System
- Intercom/PA
- Audio/Speaker
- Power-Limited Controls
- Noisy Environment
Belden - 5442FE 0081000 - Specifications
| Conductor Count | 3 Pairs |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 20 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Riser |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 Riser |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield & Drain |
| UNSPSC Code | 26121524 |
| Color | Gray |
| Stranding | 7x28 |
| Material | BC - Bare Copper |
| Stationary Min. | 2.32 in (58.9 mm) |
| Installation Min. | 2.32 in |
