Brand: Belden | SKU: B5442FE-6

Belden 5442FE 0081000 | Security & Sound Cable, #20-3 Pair, Bare Copper, Shielded, CMR

$1.46

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Belden 5442FE 0081000 | Security & Sound Cable, #20-3 Pair, Bare Copper, Shielded, CMR

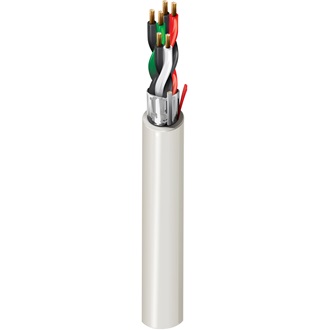

20 AWG bare copper conductors, PVC insulation, conductors twisted into pairs, multiple pairs cabled together, overall Beldfoil shield (foil side out) and drain wire, overall PVC jacket with rip cord. Sequential footage marking every two feet.

Specifications

Belden - 5442FE 0081000 - Specifications

Element	Pair(s)
Stranding	7x28
UL Temperature	75°C
Stationary Min.	2.32 in (58.9 mm)
Installation Min.	2.32 in
Max. Pull Tension	81.1 lbs (36.8 kg)
Bulk Cable Weight	33 lbs/1000ft
Environmental Suitability	Indoor - Riser, Indoor
Flammability / Reaction to Fire	UL1666 Riser, FT4, IEEE 1202 FT4
NEC / UL Compliance	Article 800, CMR
CEC / C(UL) Compliance	CMG
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	6442FE
Conductor Count	3 Pairs
Conductor Material	Bare Copper
Conductor Size	20 Awg (American Wire Gauge)
Conductor Type	Stranded Conductor
Fire Rating	Riser
Insulation Material	PVC-Polyvinyl Chloride
Jacket Material	PVC-Polyvinyl Chloride
Nec Rating	Ul Listed Art 800 Riser
Screen/Shield Type	Foil Shielded - Alum/Mylar
Screen/Shield	Yes
Shield Construction	Overall Shield &Amp Drain
UNSPC Code	26121524

Documents and Downloads

Belden 5442FE 0081000 Data Sheet
