Brand: Belden
|
SKU:
B5500F1-1000/GRN
Belden 5500F1 0081000 | Security & Sound Cable, #22-2c, TC, Shielded, CM, Water-Blocked
Regular price
$1.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5500F1 0081000 | Security & Sound Cable, #22-2c, TC, Shi...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B5500F1-1000/GRN
Regular price
$1.46
Unit price
Description
Description

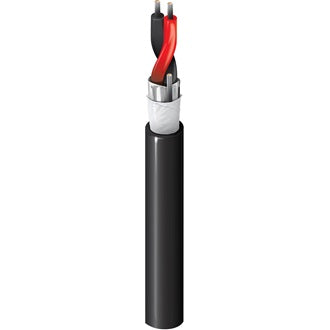

Belden 5500F1 0081000 | Security & Sound Cable, #22-2c, TC, Shielded, CM, Water-Blocked
Security & Sound Cable, Rated-CM, 2-22 AWG stranded tinned copper conductors with PVC insulation, waterblocking tape, Beldfoil® shield and PVC jacket with ripcord.
Specifications
Specifications
Belden - 5500F1 0081000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | 7x30 |
| UL Temperature | 105°C |
| Stationary Min. | 1.96 in (49.8 mm) |
| Installation Min. | 1.96 in (49.8 mm) |
| Max. Pull Tension | 19 lbs (8.6 kg) |
| Bulk Cable Weight | 15 lbs/1000ft |
| Environmental Suitability | Indoor, Outdoor |
| Sustainability | Product Lens™, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | UL1685 UL Loading, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CM |
| CEC / C(UL) Compliance | CM |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Count | 2 Conductors |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121524 |
