Brand: Belden
|
SKU:
B5500FE-1000-6
Belden 5500FE | Security & Sound Cable, 2 Conductor 22 AWG, Bare Copper, Shielded, CMR
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5500FE | Security & Sound Cable, 2 Conductor 22 AWG, Bar...
Regular price
$1.47
Unit price
Description
Description

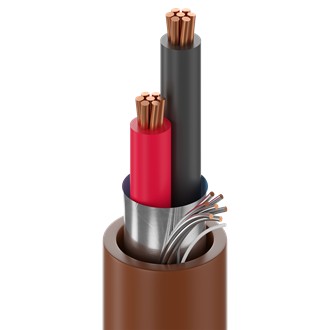

Belden 5500FE | Security & Sound Cable, 2 Conductor 22 AWG, Bare Copper, Shielded, CMR
Security & Sound Cable, Riser-CMR, 2-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord.
Specifications
Specifications
Belden - 5500FE - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 22 AWG |
| Stranding | 7x30 |
| UL Temperature | 75°C |
| Stationary Min. | 1.3 in (33 mm) |
| Installation Min. | 1.3 in (33 mm) |
| Max. Pull Tension | 23.7 lbs (10.8 kg) |
| Bulk Cable Weight | 10 lbs/1000ft |
| Environmental Suitability | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire | UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6500FH |
