Brand: Belden
|
SKU:
B5502G1
Belden 5502G1 0081000 | Multi-Conductor - Water-Blocked For Indoor/Outdoor Use 1 FS Pair + 2 22 Awg S-R PVC PVC Gray
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5502G1 0081000 | Multi-Conductor - Water-Blocked For Indoor/...
Regular price
$1.47
Unit price
Description
Description

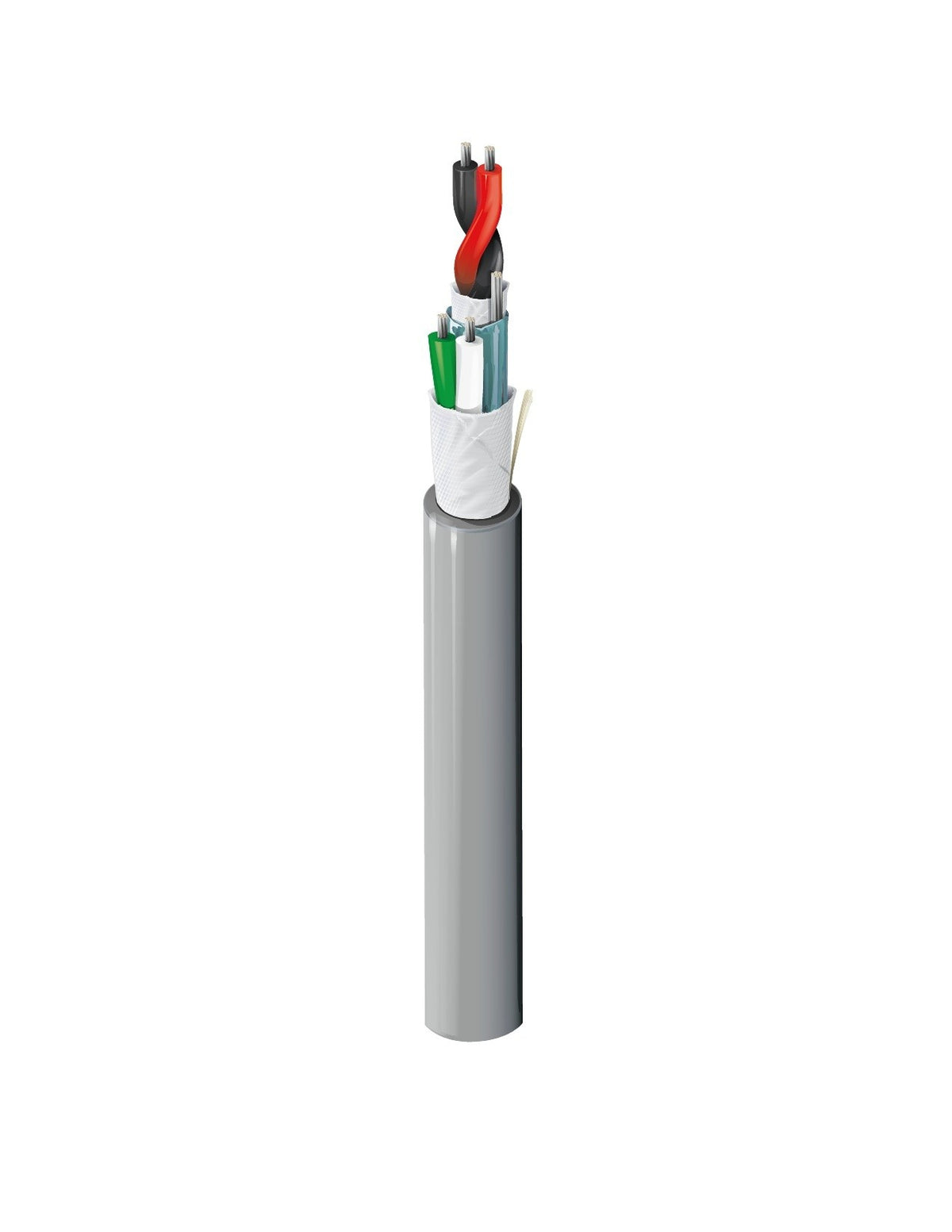

Belden 5502G1 0081000 | Multi-Conductor - Water-Blocked For Indoor/Outdoor Use 1 FS Pair + 2 22 Awg S-R PVC PVC Gray
22 AWG TC cond, PVC insul, black/red cond twisted into a pair and shielded w/Beldfoil tape and drain wire, cabled w/additional insul conductors(s) as indicated, water-blocking tape overall, PVC jkt with ripcord. Seq footage marking every two feet.
Specifications
Specifications
Belden - 5502G1 0081000 - Applications
- Security System
- Intercom/PA
- Audio/Speaker
- Power-Limited Controls
- Noisy & Wet Location
- Below-Grade Duct
Belden - 5502G1 0081000 - Specifications
| Conductor Count | All Copper Composite Cables |
|---|---|
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | General Purpose |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Composite Cables/Partial Shields |
| UNSPSC Code | 26121524 |
| Color | Gray |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
| UL Voltage Rating | 300 V |
| Bulk Cable Weight | 25 lbs/1000ft |
